SSO With Freshdesk and Spring Boot Application using JWT

Published On: 13 July 2022.By praveen sanpada.

General

SSO With Freshdesk and Spring Boot Application using JWT

What is SSO?

Single sign-on (SSO) is an authentication scheme that allows a user to login with a single ID to any of several related, yet independent, software systems. True single sign-on allows the user to log in once and access services without re-entering authentication factors.

What is Freshdesk?

Online cloud-based customer service software providing helpdesk support with all smart automations to get things done faster.

What is Spring Boot?

Spring Boot is an open source Java-based framework used to create a micro Service. It is developed by Pivotal Team and is used to build stand-alone and production ready spring applications.

What is JWT?

JSON Web Token is a proposed Internet standard for creating data with optional signature and/or optional encryption whose payload holds JSON that asserts some number of claims. The tokens are signed either using a private secret or a public/private key.

Create Spring Boot Application

1) LoginAppSsoApplication.java

package com.LoginAppSso;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class LoginAppSsoApplication {
	public static void main(String[] args) {
		SpringApplication.run(LoginAppSsoApplication.class, args);
		System.out.println("DONE");
	}
}

package com.LoginAppSso;

import org.springframework.boot.SpringApplication;

import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication

public class LoginAppSsoApplication {

public static void main(String[] args) {

SpringApplication.run(LoginAppSsoApplication.class, args);

System.out.println("DONE");

}

2) LoginController.java

package com.LoginAppSso;

import java.io.IOException;
import java.nio.file.Files;
import java.nio.file.Path;
import java.nio.file.Paths;
import java.security.KeyFactory;
import java.security.NoSuchAlgorithmException;
import java.security.PrivateKey;
import java.security.spec.InvalidKeySpecException;
import java.security.spec.PKCS8EncodedKeySpec;
import java.util.HashMap;
import java.util.Map;
import javax.servlet.http.HttpServletRequest;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.validation.BindingResult;
import org.springframework.web.bind.annotation.ModelAttribute;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RequestParam;
import io.jsonwebtoken.Claims;
import io.jsonwebtoken.Jwts;
import io.jsonwebtoken.SignatureAlgorithm;


@Controller
public class LoginController {

	@RequestMapping(value = "/", method = RequestMethod.GET)
	public String login(Model model, @RequestParam("nonce") String nonce, @RequestParam("state") String state) {
		model.addAttribute("nonce", nonce);
		model.addAttribute("state", state);
		return "index";
	}

	@RequestMapping(value = "/doLogin", method = RequestMethod.POST)
	public String checkLogin(@ModelAttribute("userFormData") LoginDTO formData, BindingResult
	result, HttpServletRequest request) throws NoSuchAlgorithmException, InvalidKeySpecException, IOException {

		String email = "praveensanpada@gmail.com";
		String password = "Auriga@123";

		String email1 = formData.getUsername().toLowerCase();
		String password1 = formData.getPassword();
		String nonce = formData.getNonce();
		String state = formData.getState();

		if(email.equals(email1)) {
			System.out.println("EMAIL");
			if(password.equals(password1)) {
				System.out.println("PASS");

				Path path = Paths.get("auriga.key");
				byte[] bytes = Files.readAllBytes(path);
				PKCS8EncodedKeySpec ks = new PKCS8EncodedKeySpec(bytes);
				KeyFactory kf = KeyFactory.getInstance("RSA");
				PrivateKey pvt1 = kf.generatePrivate(ks);

				long epoch = System.currentTimeMillis()/1000;
				Claims claims = Jwts.claims();
				        claims.put("sub", "Praveen1");
				        claims.put("email",email1);
				        claims.put("iat", epoch);
				        claims.put("nonce", nonce);
				        claims.put("given_name", "Praveen");
				        claims.put("family_name", "Sanpada");

				Map<String, Object> headers = new HashMap<String, Object>();
				headers.put("alg", "RS256");
				headers.put("typ", "JWT");

				String token = Jwts.builder()
				.setHeaderParams(headers)
				.setClaims(claims)
				.signWith(SignatureAlgorithm.RS256, pvt1).compact();

				String rUrl = "https://aurigait-464307254473032633.myfreshworks.com/sp/OIDC/464307824220156643/implicit?state="+state+"&id_token="+token;

				return "redirect:"+rUrl;
			}else {
				System.out.println("FAIL PASS");
				return "error";
			}
		}else {
			System.out.println("FAIL EMAIL");
			return "error";
		}
	}

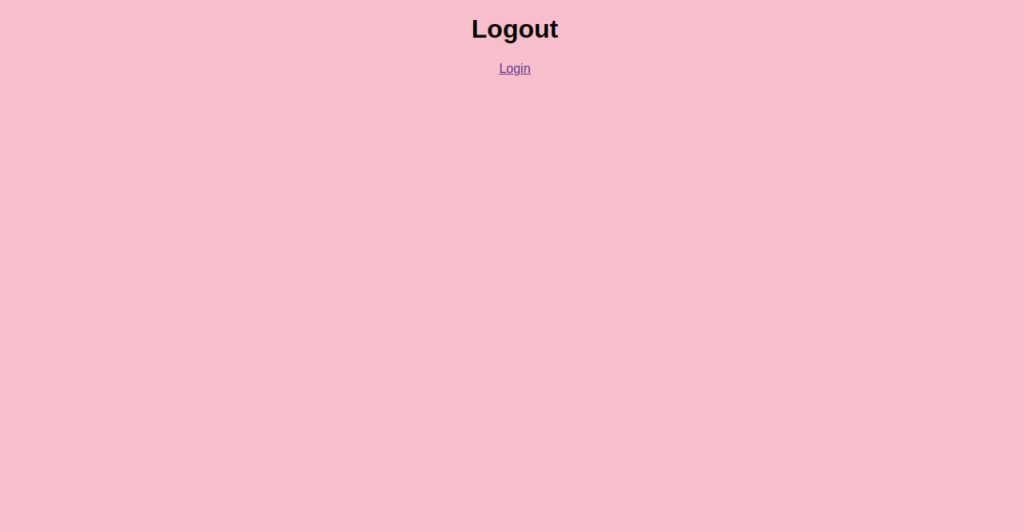

	@RequestMapping(value = "/logout", method = RequestMethod.GET)
	public String logout(){
		return "logout";
	}

}

package com.LoginAppSso;

import java.io.IOException;

import java.nio.file.Files;

import java.nio.file.Path;

import java.nio.file.Paths;

import java.security.KeyFactory;

import java.security.NoSuchAlgorithmException;

import java.security.PrivateKey;

import java.security.spec.InvalidKeySpecException;

import java.security.spec.PKCS8EncodedKeySpec;

import java.util.HashMap;

import java.util.Map;

import javax.servlet.http.HttpServletRequest;

import org.springframework.stereotype.Controller;

import org.springframework.ui.Model;

import org.springframework.validation.BindingResult;

import org.springframework.web.bind.annotation.ModelAttribute;

import org.springframework.web.bind.annotation.RequestMapping;

import org.springframework.web.bind.annotation.RequestMethod;

import org.springframework.web.bind.annotation.RequestParam;

import io.jsonwebtoken.Claims;

import io.jsonwebtoken.Jwts;

import io.jsonwebtoken.SignatureAlgorithm;

@Controller

public class LoginController {

@RequestMapping(value = "/", method = RequestMethod.GET)

public String login(Model model, @RequestParam("nonce") String nonce, @RequestParam("state") String state) {

model.addAttribute("nonce", nonce);

model.addAttribute("state", state);

return "index";

}

@RequestMapping(value = "/doLogin", method = RequestMethod.POST)

public String checkLogin(@ModelAttribute("userFormData") LoginDTO formData, BindingResult

result, HttpServletRequest request) throws NoSuchAlgorithmException, InvalidKeySpecException, IOException {

String email = "praveensanpada@gmail.com";

String password = "Auriga@123";

String email1 = formData.getUsername().toLowerCase();

String password1 = formData.getPassword();

String nonce = formData.getNonce();

String state = formData.getState();

if(email.equals(email1)) {

System.out.println("EMAIL");

if(password.equals(password1)) {

System.out.println("PASS");

Path path = Paths.get("auriga.key");

byte[] bytes = Files.readAllBytes(path);

PKCS8EncodedKeySpec ks = new PKCS8EncodedKeySpec(bytes);

KeyFactory kf = KeyFactory.getInstance("RSA");

PrivateKey pvt1 = kf.generatePrivate(ks);

long epoch = System.currentTimeMillis()/1000;

Claims claims = Jwts.claims();

claims.put("sub", "Praveen1");

claims.put("email",email1);

claims.put("iat", epoch);

claims.put("nonce", nonce);

claims.put("given_name", "Praveen");

claims.put("family_name", "Sanpada");

Map<String, Object> headers = new HashMap<String, Object>();

headers.put("alg", "RS256");

headers.put("typ", "JWT");

String token = Jwts.builder()

.setHeaderParams(headers)

.setClaims(claims)

.signWith(SignatureAlgorithm.RS256, pvt1).compact();

String rUrl = "https://aurigait-464307254473032633.myfreshworks.com/sp/OIDC/464307824220156643/implicit?state="+state+"&id_token="+token;

return "redirect:"+rUrl;

}else {

System.out.println("FAIL PASS");

return "error";

}

}else {

System.out.println("FAIL EMAIL");

return "error";

}

@RequestMapping(value = "/logout", method = RequestMethod.GET)

public String logout(){

return "logout";

}

3) LoginDTO.java

package com.LoginAppSso;

import java.io.Serializable;

public class LoginDTO implements Serializable {

private Long id;
private String username;
private String password;
private String nonce;
private String state;


public Long getId() {
	return id;
}

public void setId(Long id) {
	this.id = id;
}

public void setUsername(String username) {
	this.username = username;
}

public String getNonce() {
	return nonce;
}

public void setNonce(String nonce) {
	this.nonce = nonce;
}

public String getState() {
	return state;
}

public void setState(String state) {
	this.state = state;
}

public String getUsername() {
	return username;
}

public void setPassword(String password) {
	this.password = password;
}

public String getPassword() {
	return password;
}

}

package com.LoginAppSso;

import java.io.Serializable;

public class LoginDTO implements Serializable {

private Long id;

private String username;

private String password;

private String nonce;

private String state;

public Long getId() {

return id;

}

public void setId(Long id) {

this.id = id;

}

public void setUsername(String username) {

this.username = username;

}

public String getNonce() {

return nonce;

}

public void setNonce(String nonce) {

this.nonce = nonce;

}

public String getState() {

return state;

}

public void setState(String state) {

this.state = state;

}

public String getUsername() {

return username;

}

public void setPassword(String password) {

this.password = password;

}

public String getPassword() {

return password;

}

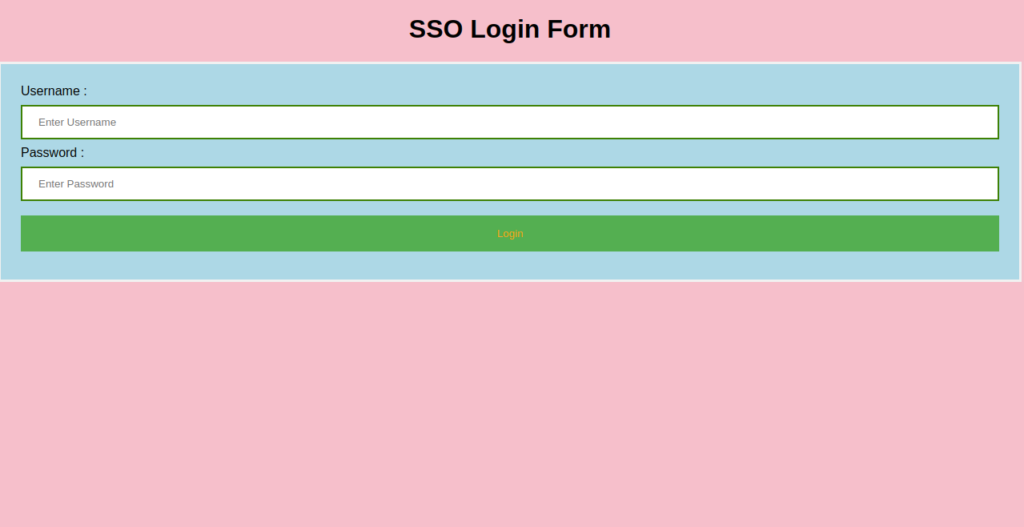

4) index.html

<!DOCTYPE html>
<html>
<head>
<meta name="viewport" content="width=device-width, initial-scale=1">
<title> Login Page </title>
<style>
Body {
  font-family: Calibri, Helvetica, sans-serif;
  background-color: pink;
}
button {
       background-color: #4CAF50;
       width: 100%;
        color: orange;
        padding: 15px;
        margin: 10px 0px;
        border: none;
        cursor: pointer;
         }
 form {
        border: 3px solid #f1f1f1;
    }
 input[type=text], input[type=password] {
        width: 100%;
        margin: 8px 0;
        padding: 12px 20px;
        display: inline-block;
        border: 2px solid green;
        box-sizing: border-box;
    }
 button:hover {
        opacity: 0.7;
    }
  .cancelbtn {
        width: auto;
        padding: 10px 18px;
        margin: 10px 5px;
    }


 .container {
        padding: 25px;
        background-color: lightblue;
    }
</style>
</head>
<body>
    <center> <h1> SSO Login Form </h1> </center>
    <form action="doLogin" method="POST" modelAttribute="userFormData">
        <div class="container">
            <label>Username : </label>
            <input type="text" placeholder="Enter Username" name="username" required>
            <label>Password : </label>
            <input type="password" placeholder="Enter Password" name="password" required>
            <input type="hidden" name="nonce" th:value="${nonce}">
            <input type="hidden" name="state" th:value="${state}">
            <button type="submit">Login</button>
        </div>
    </form>
</body>
</html>

<!DOCTYPE html>

<html>

<head>

<title> Login Page </title>

<style>

Body {

font-family: Calibri, Helvetica, sans-serif;

background-color: pink;

}

button {

background-color: #4CAF50;

width: 100%;

color: orange;

padding: 15px;

margin: 10px 0px;

border: none;

cursor: pointer;

}

form {

border: 3px solid #f1f1f1;

}

input[type=text], input[type=password] {

width: 100%;

margin: 8px 0;

padding: 12px 20px;

display: inline-block;

border: 2px solid green;

box-sizing: border-box;

}

button:hover {

opacity: 0.7;

}

.cancelbtn {

width: auto;

padding: 10px 18px;

margin: 10px 5px;

}

.container {

padding: 25px;

background-color: lightblue;

}

</style>

</head>

<body>

<center> <h1> SSO Login Form </h1> </center>

<label>Username : </label>

<label>Password : </label>

<button type="submit">Login</button>

</div>

</form>

</body>

</html>

5) success.html

<!DOCTYPE html>
<html>
<head>
<meta name="viewport" content="width=device-width, initial-scale=1">
<title> Login Page </title>
<style>
Body {
  font-family: Calibri, Helvetica, sans-serif;
  background-color: pink;
}
button {
       background-color: #4CAF50;
       width: 100%;
        color: orange;
        padding: 15px;
        margin: 10px 0px;
        border: none;
        cursor: pointer;
         }
 form {
        border: 3px solid #f1f1f1;
    }
 input[type=text], input[type=password] {
        width: 100%;
        margin: 8px 0;
        padding: 12px 20px;
        display: inline-block;
        border: 2px solid green;
        box-sizing: border-box;
    }
 button:hover {
        opacity: 0.7;
    }
  .cancelbtn {
        width: auto;
        padding: 10px 18px;
        margin: 10px 5px;
    }


 .container {
        padding: 25px;
        background-color: lightblue;
    }
</style>
</head>
<body>
 <center> <h1> Success </h1> </center>
    <center> <a href="/logout">Logout</a>  </center>
</body>
</html>

<!DOCTYPE html>

<html>

<head>

<title> Login Page </title>

<style>

Body {

font-family: Calibri, Helvetica, sans-serif;

background-color: pink;

}

button {

background-color: #4CAF50;

width: 100%;

color: orange;

padding: 15px;

margin: 10px 0px;

border: none;

cursor: pointer;

}

form {

border: 3px solid #f1f1f1;

}

input[type=text], input[type=password] {

width: 100%;

margin: 8px 0;

padding: 12px 20px;

display: inline-block;

border: 2px solid green;

box-sizing: border-box;

}

button:hover {

opacity: 0.7;

}

.cancelbtn {

width: auto;

padding: 10px 18px;

margin: 10px 5px;

}

.container {

padding: 25px;

background-color: lightblue;

}

</style>

</head>

<body>

<center> <h1> Success </h1> </center>

<center> <a href="/logout">Logout</a> </center>

</body>

</html>

6) logout.html

<!DOCTYPE html>
<html>
<head>
<meta name="viewport" content="width=device-width, initial-scale=1">
<title> Login Page </title>
<style>
Body {
  font-family: Calibri, Helvetica, sans-serif;
  background-color: pink;
}
button {
       background-color: #4CAF50;
       width: 100%;
        color: orange;
        padding: 15px;
        margin: 10px 0px;
        border: none;
        cursor: pointer;
         }
 form {
        border: 3px solid #f1f1f1;
    }
 input[type=text], input[type=password] {
        width: 100%;
        margin: 8px 0;
        padding: 12px 20px;
        display: inline-block;
        border: 2px solid green;
        box-sizing: border-box;
    }
 button:hover {
        opacity: 0.7;
    }
  .cancelbtn {
        width: auto;
        padding: 10px 18px;
        margin: 10px 5px;
    }


 .container {
        padding: 25px;
        background-color: lightblue;
    }
</style>
</head>
<body>
    <center> <h1> Logout </h1> </center>
    <center> <a href="/">Login</a>  </center>
</body>
</html>

<!DOCTYPE html>

<html>

<head>

<title> Login Page </title>

<style>

Body {

font-family: Calibri, Helvetica, sans-serif;

background-color: pink;

}

button {

background-color: #4CAF50;

width: 100%;

color: orange;

padding: 15px;

margin: 10px 0px;

border: none;

cursor: pointer;

}

form {

border: 3px solid #f1f1f1;

}

input[type=text], input[type=password] {

width: 100%;

margin: 8px 0;

padding: 12px 20px;

display: inline-block;

border: 2px solid green;

box-sizing: border-box;

}

button:hover {

opacity: 0.7;

}

.cancelbtn {

width: auto;

padding: 10px 18px;

margin: 10px 5px;

}

.container {

padding: 25px;

background-color: lightblue;

}

</style>

</head>

<body>

<center> <h1> Logout </h1> </center>

<center> <a href="/">Login</a> </center>

</body>

</html>

7) error.html

<!DOCTYPE html>
<html>
<head>
<meta name="viewport" content="width=device-width, initial-scale=1">
<title> Login Page </title>
<style>
Body {
  font-family: Calibri, Helvetica, sans-serif;
  background-color: pink;
}
button {
       background-color: #4CAF50;
       width: 100%;
        color: orange;
        padding: 15px;
        margin: 10px 0px;
        border: none;
        cursor: pointer;
         }
 form {
        border: 3px solid #f1f1f1;
    }
 input[type=text], input[type=password] {
        width: 100%;
        margin: 8px 0;
        padding: 12px 20px;
        display: inline-block;
        border: 2px solid green;
        box-sizing: border-box;
    }
 button:hover {
        opacity: 0.7;
    }
  .cancelbtn {
        width: auto;
        padding: 10px 18px;
        margin: 10px 5px;
    }


 .container {
        padding: 25px;
        background-color: lightblue;
    }
</style>
</head>
<body>
    <center> <h1> Error </h1> </center>
    <center> <a href="https://aurigait-464307254473032633.myfreshworks.com">Login With FreshDesk SSO !!!</a>  </center>
</body>
</html>

<!DOCTYPE html>

<html>

<head>

<title> Login Page </title>

<style>

Body {

font-family: Calibri, Helvetica, sans-serif;

background-color: pink;

}

button {

background-color: #4CAF50;

width: 100%;

color: orange;

padding: 15px;

margin: 10px 0px;

border: none;

cursor: pointer;

}

form {

border: 3px solid #f1f1f1;

}

input[type=text], input[type=password] {

width: 100%;

margin: 8px 0;

padding: 12px 20px;

display: inline-block;

border: 2px solid green;

box-sizing: border-box;

}

button:hover {

opacity: 0.7;

}

.cancelbtn {

width: auto;

padding: 10px 18px;

margin: 10px 5px;

}

.container {

padding: 25px;

background-color: lightblue;

}

</style>

</head>

<body>

<center> <h1> Error </h1> </center>

<center> <a href="https://aurigait-464307254473032633.myfreshworks.com">Login With FreshDesk SSO !!!</a> </center>

</body>

</html>

8) application.properties

server.port=8889

1	server.port=8889

9) Run the Spring Boot Application

Configure Spring Boot Application with Freshdesk

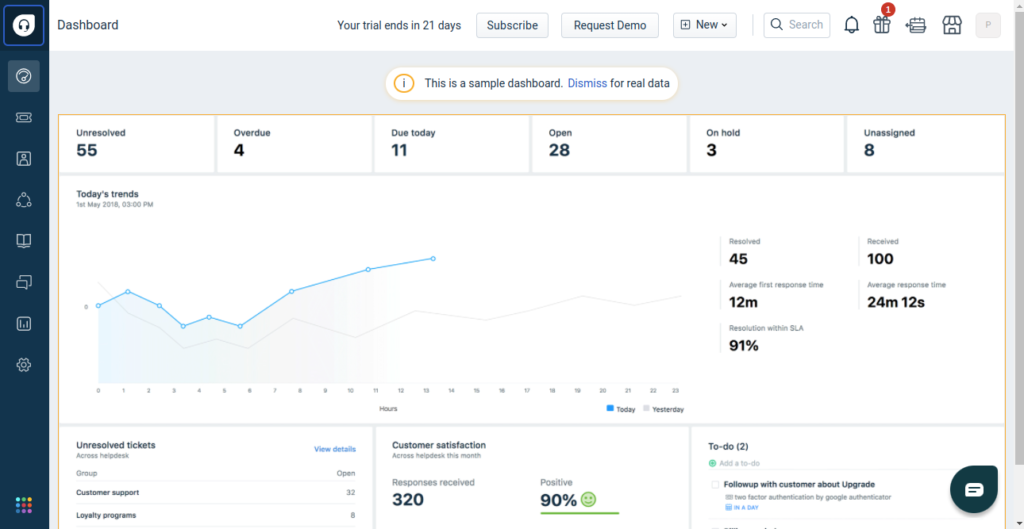

1) Login into Freshdesk Application

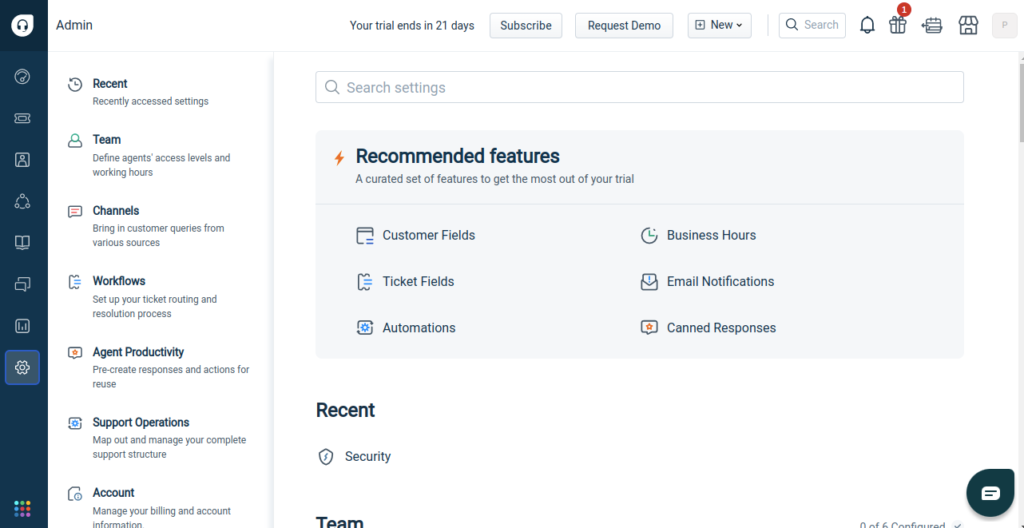

2) Go to Admin Part

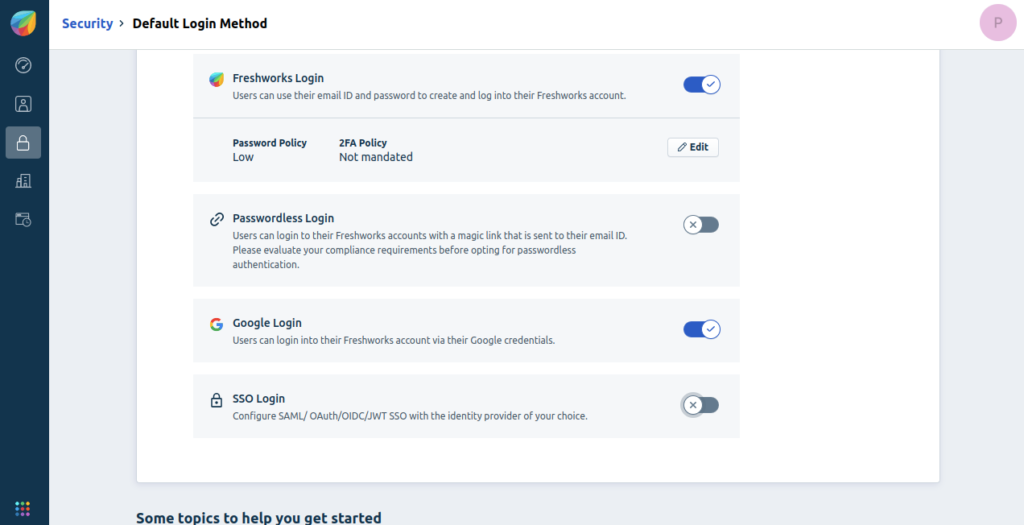

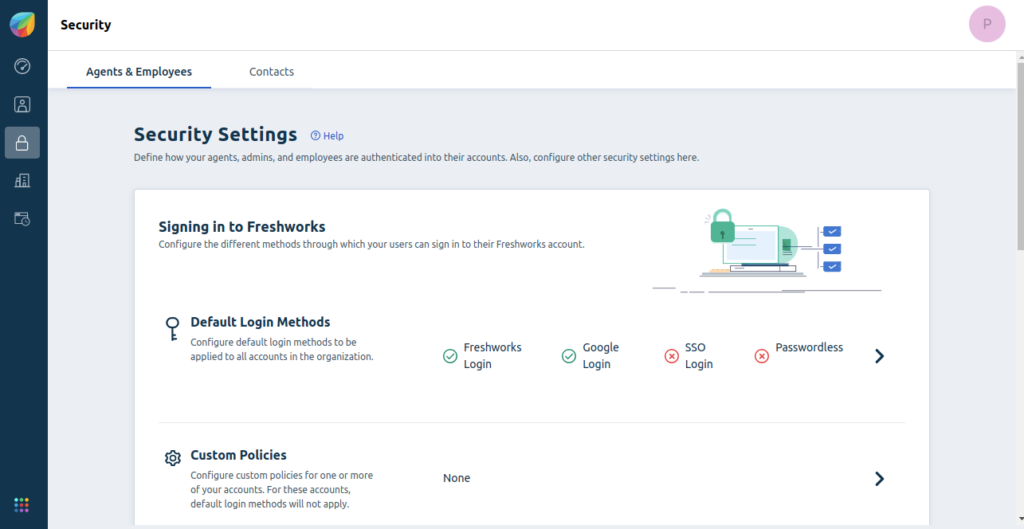

3) Go to Security Setttings and Activate Freshworks SSO

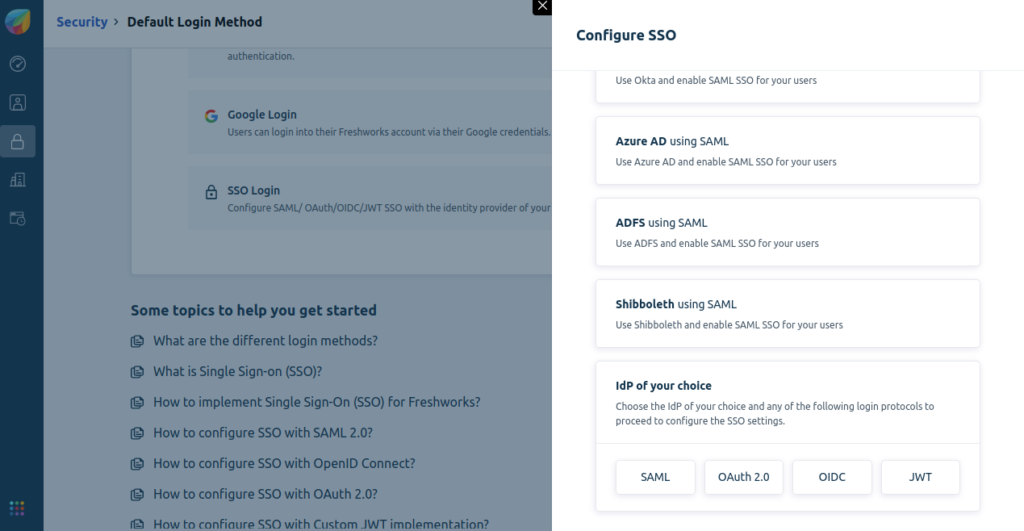

4) Configure SSO

5) Select JWT Method

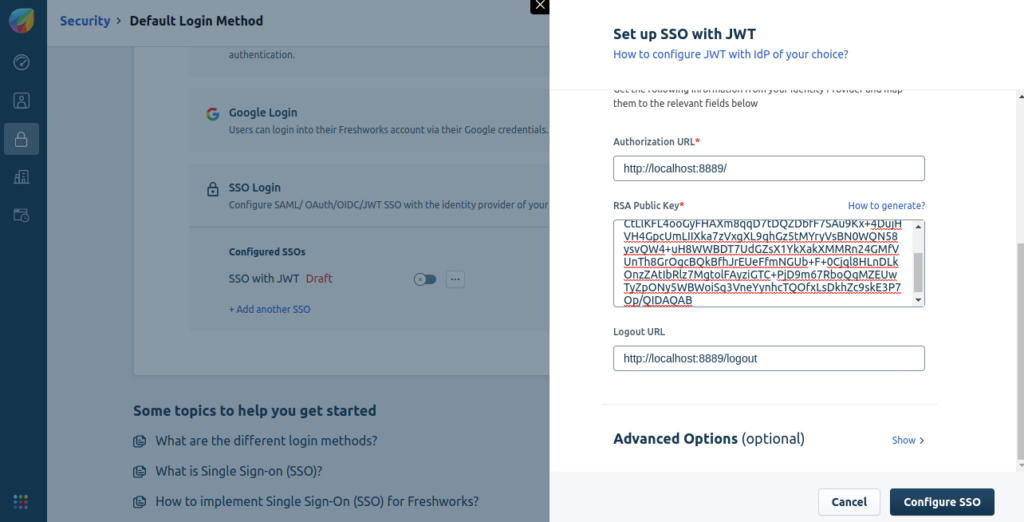

6) Paste Login form url of Spring Boot Application in Authorization URL Paste RSA public key in RSA Public Key and Paste logout url of Spring Boot Application in Logout URL.

7) Click on configure SSO

8) Create JWT token

Header:-
{ "alg": "RS256", "typ": "JWT"}

1 2	Header:- { "alg": "RS256", "typ": "JWT"}

Payload:-
Claims claims = Jwts.claims();

claims.put("sub", "Praveen1");
claims.put("email",email1);
claims.put("iat", epoch);
claims.put("nonce", nonce);
claims.put("given_name", "Praveen");
claims.put("family_name", "Sanpada");

Payload:-

Claims claims = Jwts.claims();

claims.put("sub", "Praveen1");

claims.put("email",email1);

claims.put("iat", epoch);

claims.put("nonce", nonce);

claims.put("given_name", "Praveen");

claims.put("family_name", "Sanpada");

`Signature:-`

Generate Public Key and Private Key:-

->https://www.novixys.com/blog/how-to-generate-rsa-keys-java/

`->https://www.aurigait.com/blog/xml-signatures-build-a-secure-channel-for-data-exchange-and-communication/`

`->https://www.baeldung.com/java-read-pem-file-keys`

Use Private key in Spring boot application for create orsigning token

Use Public key in FreshDesk Application in Configuration part

9)Read nonce and state part from url in Spring Boot Application

From this url :- https://sso-auriga-app.herokuapp.com/?response_type=id_token&client_id=464307824220156643&scope=openid%20email%20profile&state=YXVyaWdhaXQtNDY0MzA3MjU0NDczMDMyNjMzLm15ZnJlc2h3b3Jrcy5jb207RTJRaEFldGFRbU9icVMxa25vUHU4OXVZK1l3NTk5K0xQZUl2dGdKbm9Wdz07N2NXTXhxY05QUjRBSjEzag%3D%3D&redirect_uri=https://aurigait-464307254473032633.myfreshworks.com/sp/OIDC/464307824220156643/implicit&registration_id=464307824220156643&nonce=7cWMxqcNPR4AJ13j

10)Implement all this fields in given below code

Path path = Paths.get("auriga.key");
byte[] bytes = Files.readAllBytes(path);
PKCS8EncodedKeySpec ks = new PKCS8EncodedKeySpec(bytes);
KeyFactory kf = KeyFactory.getInstance("RSA");
PrivateKey pvt1 = kf.generatePrivate(ks);

long epoch = System.currentTimeMillis()/1000;
Claims claims = Jwts.claims();
	claims.put("sub", "Praveen1");
	claims.put("email",email1);
	claims.put("iat", epoch);
	claims.put("nonce", nonce);
	claims.put("given_name", "Praveen");
	claims.put("family_name", "Sanpada");

Map<String, Object> headers = new HashMap<String, Object>();
	headers.put("alg", "RS256");
	headers.put("typ", "JWT");

String token = Jwts.builder()
		.setHeaderParams(headers)
		.setClaims(claims)
		.signWith(SignatureAlgorithm.RS256, pvt1).compact();

String rUrl = "https://aurigait-464307254473032633.myfreshworks.com/sp/OIDC/464307824220156643/implicit?state="+state+"&id_token="+token;
